Technical specifications for the Darjeeling 'A' Class.
Internal gas firing using our ‘FG’ type burner.
0-4-0 outside framed chassis with two double acting slide valve cylinders operated by a simplified Walschaerts type valve gear.
Exhaust enhancer.
Water top-up system and water gauge with new striped backing.
Controls fitted as standard are :- steam regulator, safety valve, pressure gauge, displacement lubricator, gas regulator and reversing gear.
Dimensions (loading gauge) are :- length 315mm over buffers, width 113mm, height 138mm, weight 2.9 Kg.
Full radio control is available for both regulator and reversing valve gear using 2.4GHz R/C.
Rechargeable battery pack with onboard charging port
Currently only available in R/C, with manual control in development.
The wheels are adjustable between 32mm and 45mm gauge.
Insulated Wheels Fitted
Minimum radius 2'.

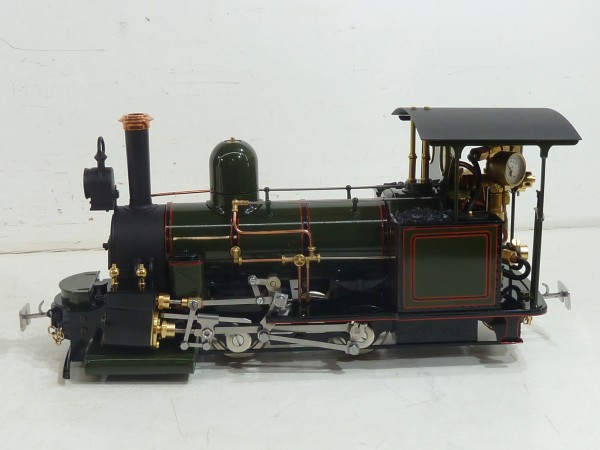

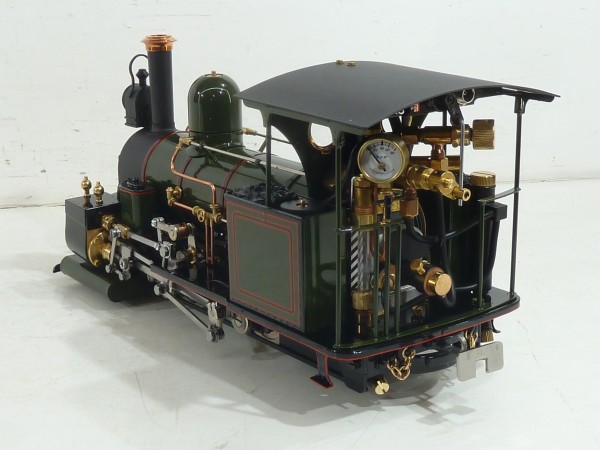

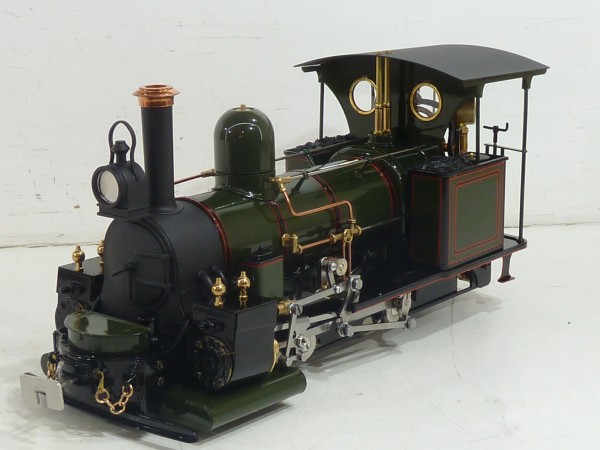

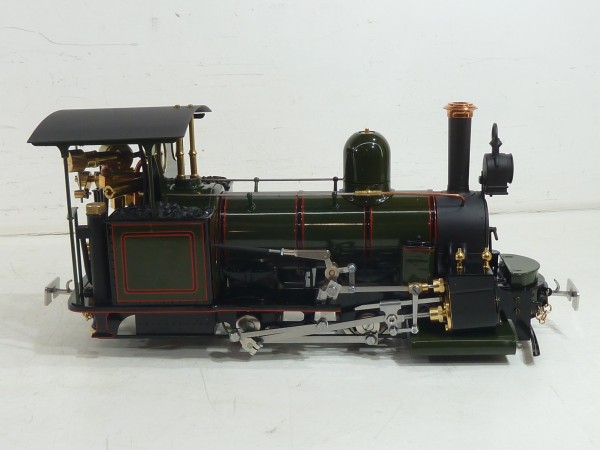

Available in any Standard Roundhouse Colour, shown here in Deep Bronze Green
