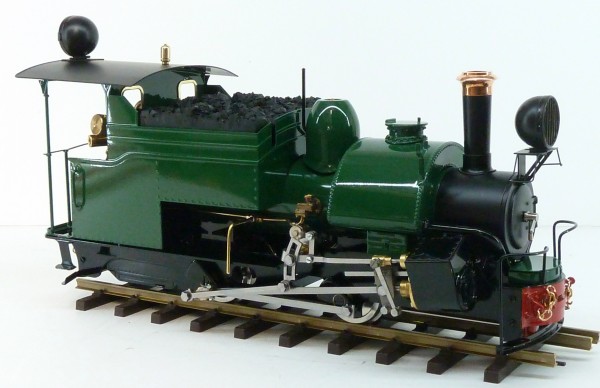

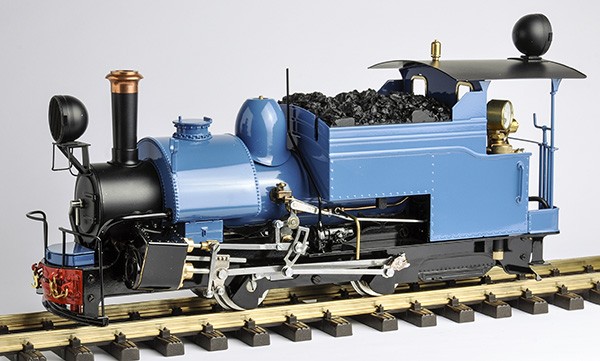

Darjeeling B Class R/C 32mm Price inc. insulated wheelsDarjeeling B Class R/C 32mm Price inc. insulated wheels

Darjeeling B Class R/C 32mm Price inc. insulated wheels

Product Code: RHDRC32 £2475.00 Stock : 0
More From Roundhouse
Share this product:
The Darjeeling Himalayan Railway is probably one of the most famous narrow gauge railways in the world. Situated in India, this engineering masterpiece which rises a total of 6,850 feet over it's 50 mile length, was constructed between 1878 and 1881.
The railways main motive power were the well known class 'B' 0-4-0 well tank/saddle tank engines designed by Sharp Stewart & Co of Glasgow.
Between 1889 and 1929 the DHR purchased a total of 33 of this class of locomotive from Sharp Stewart, North British Locomotive Co and Baldwin Locomotive Works as well as building 3 in it's own workshops, and locomotives dating back to 1892 are still in use today.

The Roundhouse class 'B' is typical of the locomotives that are currently in operation on the railway and features a wealth of detail to augmen the legendary Roundhouse performance and reliability.

Technical specifications for the Darjeeling 'B' class.
0-4-0 outside framed chassis with two double acting slide valve cylinders operated by a simplified Walschaerts type valve gear.
Exhaust enhancer.
Internal gas firing using the ROUNDHOUSE 'FG' gas system.
Controls fitted as standard are :- steam regulator, safety valve, pressure gauge, displacement lubricator, gas regulator and reversing gear.
Water gauge and boiler top up system fitted as standard.
The wheels are adjustable between 32mm and 45mm gauge.
Dimensions (loading gauge) are :- length 365mm over buffers, width 115mm, height 170mm, weight 3.5 Kg.
Full radio control is available for both regulator and reversing valve gear.
Available in any standard ROUNDHOUSE colour.

Please note we can also supply the following items for your steam loco:
G32 - Gas
FG31 - Gas Adaptor Filler
G34 or G35 - Steam Oil
NG101, NG103 or NG112 - Carrying Cases
